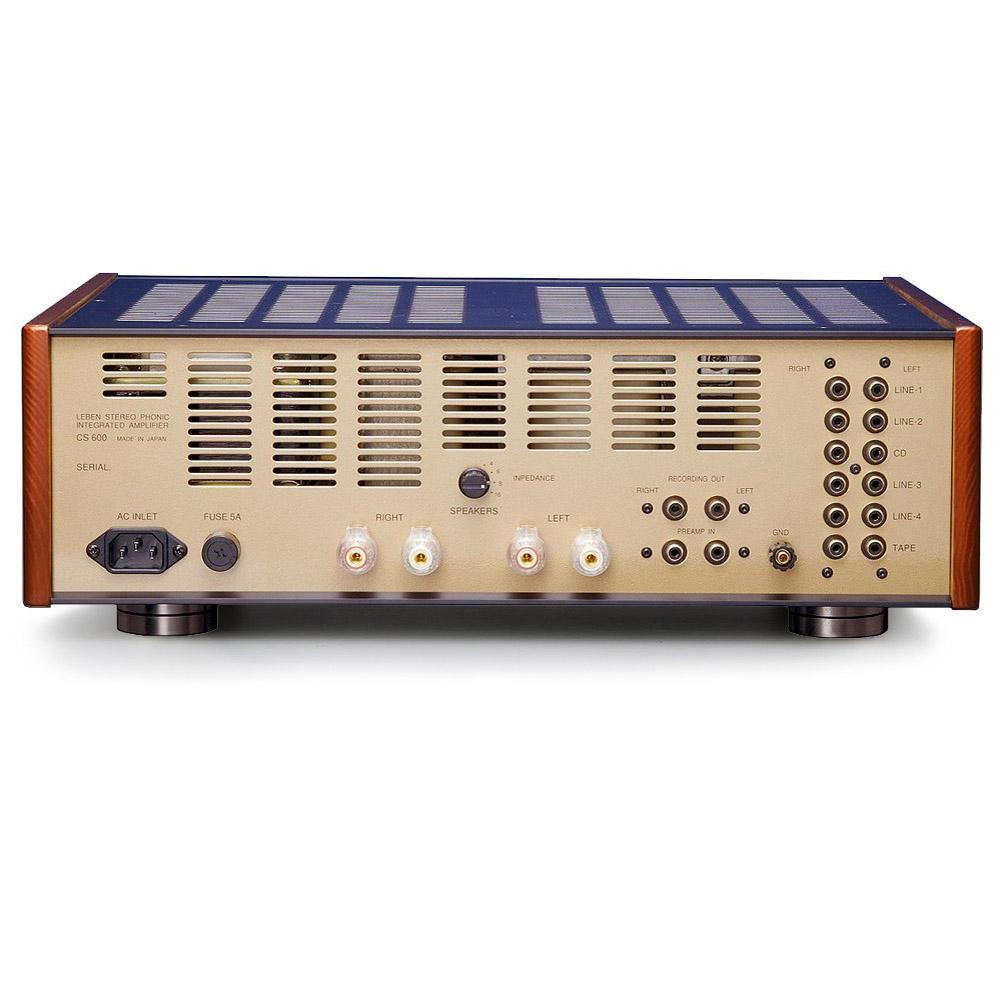

Leben CS 600 X
Leben CS 600 X
Regular price
£9,250.00 GBP
Regular price
Sale price
£9,250.00 GBP
Unit price
/
per
Tax included.
Couldn't load pickup availability
- Twin-triode tube 6CS7 for the first-stage amplification.
- WBT type speaker terminals.
- Heavy-duty output transformer for 50W grade amplifiers.
- Large capacity choke-coil: 5H350mA
- Dumper tube 6CJ3 (for Colour TV use) is applied to delay a supply of high voltage (B-Voltage) to output tubes in order to protect output tubes from damages and to longer the life.
- All high-end audio grade electrical components (condensors, resistors)
- Operation lamp indicator
- Succeeding a front design of CS-300/CS-300X.
- 24K Gold-Plated Knobs.
- Side Wood-Panels.
| TUBES EQUIPPED | (4) 6L6GC (5881) SOVTEK, (EL34/6CA7 - Option) (4) 6CS7 (1) 6CJ3 |
|---|---|
| OUTPUT POWER | 32W x 2 (6L6GC) at 1KHz. 28W x 2 (EL34) at 1KHz. |
| FREQUENCY RESPONSE | 10Hz - 100KHz. (-0.1dB) |
| DISTORTION | 0.7%(10W) |
| INPUT SENSITIVITY | 900mV at 20W |
| OUTPUT IMPEDANCE | 4/6/8/16 Ohms (Selectable) |
| POWER CONSUMPTION | |
| WEIGHT | 22.5 Kgs. |
| DIMENSIONS | 450 (W) X 360 (D) X 142 (H) mm |
| ATTACHMENT | Detachable AC Power Cable x 1 |
