KLH Model 5

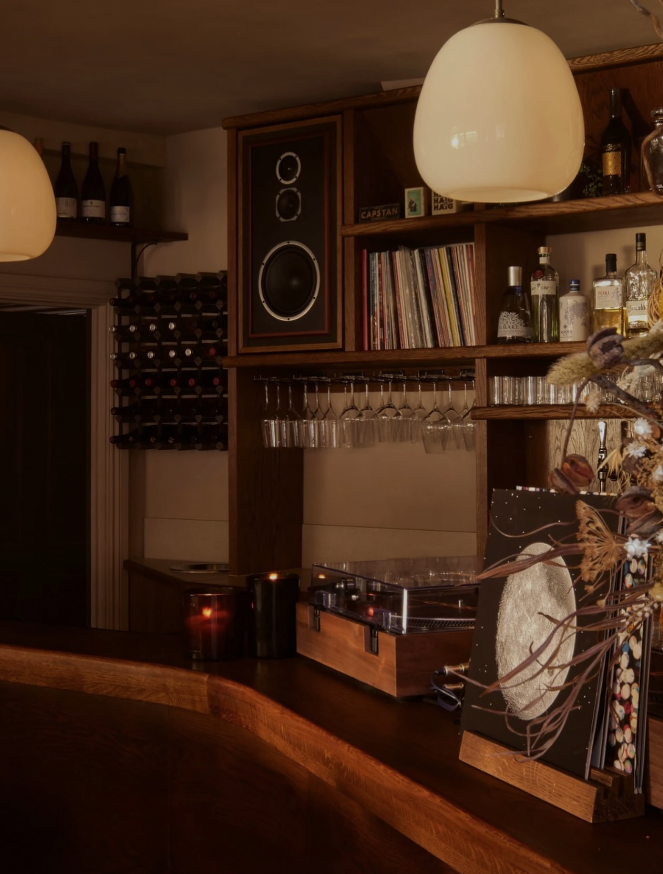

Very pleased to have these back in the shop! A brilliant 3 way speaker with classic design and a big, full, punchy sound reminiscent of some of our favourite vintage speakers. Work well in the home and in commercial settings. Check out this great restaurant install where we used them to great effect.

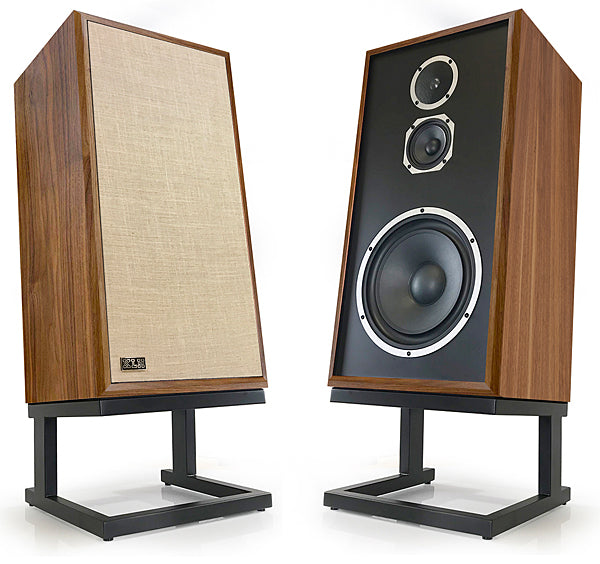

Great stands too!

KLH Audio Model Five Speakers (Pair) are 3-way acoustic suspension speakers that have been re-designed to provide you with an updated and more powerful sound whilst still retaining the vintage look and feel these speakers have become synonymous for.

KLH Audio has re-introduced the classic and well-loved Model Five speaker pair, and has refreshed the design with modern loudspeaker technology to stand up to today's competitors, but it still retains it's legendary look, feel and sound.

- Freq Response: 42Hz – 20,000Hz +/- 3dB
- Low Freq Extension: -10dB @ 32Hz
- In-Room Sensitivity: 90.5dB @2.83V / 1M
- Free-field Sensitivity: 87.5dB @ 2.83V / 1M
- Power Handling: 200W / 800W Peak
- Recommended Amplification: 20W to 200W
- In-Room Maximum SPL: 112.3dB
- Impedance: 6 Ohms (3.5 ohm minimum @140 Hz)
- Horizontal Dispersion: 140° Degrees
- Features: Three-Position Acoustic Balance Control
- MF Crossover: 380Hz (2nd Order Electro-Acoustic)
- HF Crossover: 2,850Hz (2nd Order Electro-Acoustic)
- HF: 1" Aluminum Dome with Soft Rubber Suspension
- MF: 4" Pulp-Paper Cone, Reverse Roll Rubber Suspension
- LF: 10" Pulp-Paper Cone, Reverse Roll Rubber Suspension
- 2" Diameter Flat-Wire Voice Coil
- Structurally Reinforced ¾" Medium Density Fiberboard
- Inputs: Five-Way Gold-Plated Binding Posts
- Height: 87.0cm w/ Included Riser Base, 66cm w/o Riser Base
- Width: 35.0cm
- Depth: 33.0cm w/ Included Riser Base, 29.2cm w/o Riser Base
- Weight: 20.0kg
- Weight with Riser Base: 23.6kg
